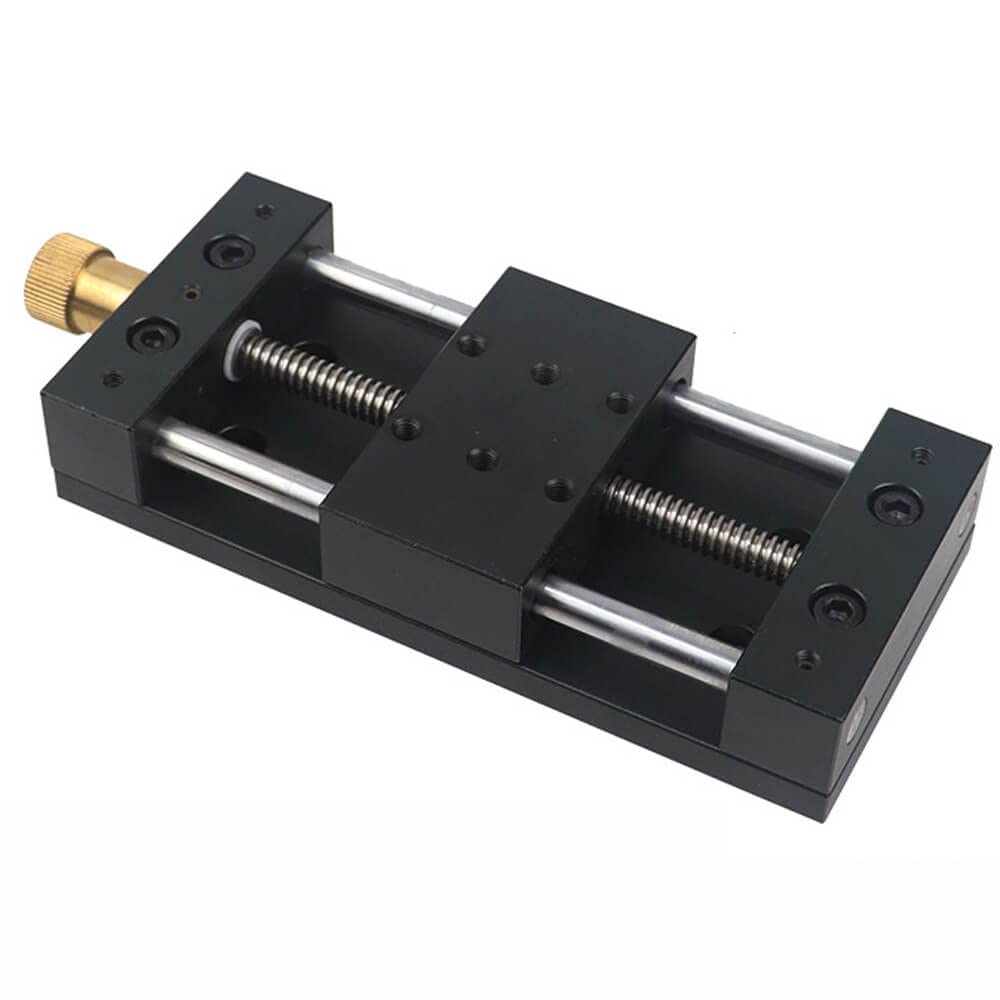

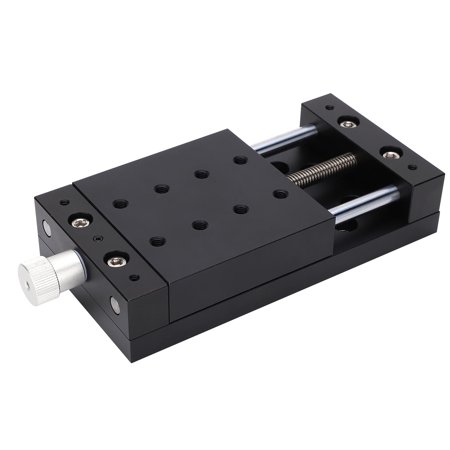

Herwey Xu2011Axis Linear Stage Manual Twist Fineu2011Tune Platform Sliding Table Aluminum Alloy Sp80a Db40 Linear Sliding Table X Axis Linear Stage

About This Product

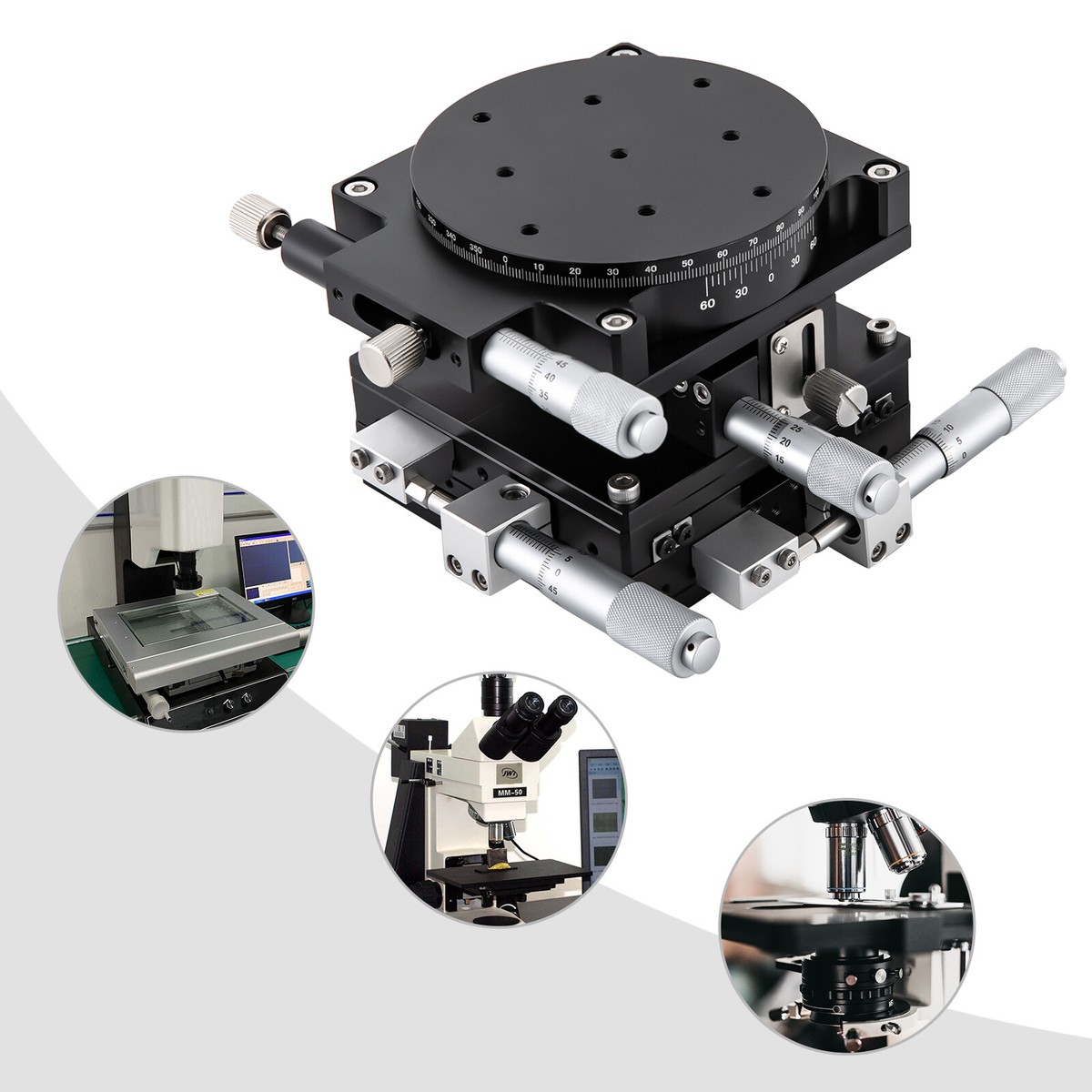

Manual Linear Stage is manufactured using high quality Aluminum Alloy-Black-anodized that help make it have high quality. If you need, welcome to contact us to know more Safety Features: The product is designed with rounded corner protection and all edges are deburred to enhance user safety during. Travel: XY:±6.5 mm.Itinerary: Z: 10 mm.Load: 24.5 N(3kgf).Accuracy: 0.03 mm.Parallel: 0.03 mm. The main material of the manual linear stage is bearing steel, so the manual linear stage has very high stability and rigidity. 4 Axis XYZR Manual Trimming Platform Linear Stage Bearing PT-LX100Manual Linear Stage, Ball Screw Slide Table, Manual Platform,Translation Station,Optical Sliding Table Smooth Operations: The manual rotating linear stage utilizes the movement of the dovetail drive, offering a considerable load-bearing capacity and stable movement, with silence during. Safety Features: The product is designed with rounded corner and all edges are deburred to enhance user safety during operation. Versatile Application: The slide rail of the fine-tuning platform is ideal for use with optical and measuring equipment, semiconductor manufacturing gear, testing machines, and microscopes, among others. Specification: Item Type: Manual Rotating Linear Stage Model: RB-A80 (or RB-A80-R) Table Size: Diameter: Approx. 80mm / 3.1in Moving Direction: Rotate 360° Body Material: Aluminum alloy (black anodized) Drive Mode: Disc clamping Glide Trajectory: Manual rotation Rail Type: Rotating type Number of Threaded Mounting Holes on the Countertop: 8+8 The Diameter of the Threaded Mounting Hole on the Countertop: 8-M4mm; 8-M3mm Depth of Countertop Threaded Mounting Hole: Approx. 6mm / 0.2in Vertical Load: 39.2N (4Kgf) Movement Stroke: Coarse adjustment 360°; fine adjustment ±5° Minimum Reading: 0.01mm (or 0.001°) Straightness: 0.05mm Package List: 1 x Manual Rotating Linear Stage 2 x Fixing Screw Note: Avoid working in high temperature, high humidity or humid rain water environment. Material: The manual rotary linear platform is constructed from lightweight yet robust aluminium alloy. Herwey Xu2011Axis Linear Stage Manual Twist Fineu2011Tune Platform Sliding Table Aluminum Alloy Sp80a Db40 Linear Sliding Table X Axis Linear Stage The stainless steel screw is processed with surface passivation treatment, rust-proof and fadeless. 25mm travel range with 0.002mm resolution. · High quality lead screw with 0.25mm pitch. · Precision crossed roller guide provides high accuracy and parallelism
